Studing the enviroment of the galaxies¶
Downloading this notebook example¶
This notebook can be downloaded in this link
Loading libraries¶
[1]:
import stat_lib as SL
command to unable the cell scroll
[2]:
%%javascript
IPython.OutputArea.prototype._should_scroll = function(lines) { return false; }
The Hydra BCG (NGC3311) enviroment within a box of 500kpc¶
See the full explication of the parameters of simbad_thumbnail() here
[3]:
SL.simbad_thumbnail('ngc3311', 'simbad',
size_image_phy=100,
limtvel=500)
Basic information:
-------------------
Galaxy Name: ngc3311
MAIN_ID: NGC 3311
RA = 159.178421
DEC = -27.528339
Rad Vel = 3858.0 km/s
Distance = 55.1 Mpc
This fits_images/ngc3311_simbad_100kpc.fits file is already downloaded...
------------------------
Simbad query
============
region(circle, 159.178421d -27.528339d, 374s) & radvel < 4358.0 & radvel > 3358.0 & Otypes = G & maintype != GlobCluster_Candidate
Output
======
MAIN_ID RA_d ... RVZ_BIBCODE SCRIPT_NUMBER_ID
deg ...
----------------------- ------------ ... ------------------- ----------------
LEDA 141484 159.17824000 ... 2004AJ....128.1558S 0
[MMH2011] 66 159.16242000 ... 2011A&A...531A...4M 0
[WH2007] UCD 23 159.21175000 ... 2011A&A...531A...4M 0
NGC 3311 159.17842100 ... 2014ApJ...797...82L 0
LEDA 754327 159.08040000 ... 2003ApJ...591..764C 0
NGC 3307 159.07155386 ... 2004AJ....128.1558S 0
NGC 3309 159.14858629 ... 2004AJ....128.1558S 0
GALEX J103645.9-273126 159.19104000 ... 2003ApJ...591..764C 0
HCC 27 159.19042000 ... 2003ApJ...591..764C 0
HCC 28 159.17912000 ... 2003ApJ...591..764C 0
2MASS J10362745-2726312 159.11441400 ... 2003ApJ...591..764C 0
[CZ2003] 1060D-393 9 159.22962000 ... 2003ApJ...591..764C 0
HCC 45 159.18500000 ... 2008A&A...486..697M 0
[MMH2011] HUCD30 159.20830000 ... 2011A&A...531A...4M 0
[MMH2011] HUCD39 159.18790000 ... 2011A&A...531A...4M 0
Projected Distances
------------------------
Proyected distance ngc3311 and (0) LEDA 141484 (3588.0 km/s) is = 55.5\,kpc (207.6$\arcsec$)
Proyected distance ngc3311 and (1) [MMH2011] 66 (3950.0 km/s) is = 14.5\,kpc (54.3$\arcsec$)
Proyected distance ngc3311 and (2) [WH2007] UCD 23 (3584.0 km/s) is = 29.0\,kpc (108.6$\arcsec$)
Proyected distance ngc3311 and (3) NGC 3311 (3858.0 km/s) is = 0.0\,kpc (0.0$\arcsec$)
Proyected distance ngc3311 and (4) LEDA 754327 (3886.0 km/s) is = 95.8\,kpc (358.6$\arcsec$)
Proyected distance ngc3311 and (5) NGC 3307 (3768.0 km/s) is = 91.2\,kpc (341.2$\arcsec$)
Proyected distance ngc3311 and (6) NGC 3309 (4058.0 km/s) is = 27.2\,kpc (101.9$\arcsec$)
Proyected distance ngc3311 and (7) GALEX J103645.9-273126 (4195.0 km/s) is = 11.8\,kpc (44.0$\arcsec$)
Proyected distance ngc3311 and (8) HCC 27 (3791.0 km/s) is = 21.5\,kpc (80.4$\arcsec$)
Proyected distance ngc3311 and (9) HCC 28 (3910.0 km/s) is = 99.5\,kpc (372.5$\arcsec$)
Proyected distance ngc3311 and (10) 2MASS J10362745-2726312 (3744.0 km/s) is = 99.4\,kpc (372.0$\arcsec$)
Proyected distance ngc3311 and (11) [CZ2003] 1060D-393 9 (4112.0 km/s) is = 90.2\,kpc (337.7$\arcsec$)
Proyected distance ngc3311 and (12) HCC 45 (4252.0 km/s) is = 7.5\,kpc (28.2$\arcsec$)
Proyected distance ngc3311 and (13) [MMH2011] HUCD30 (3901.0 km/s) is = 25.7\,kpc (96.2$\arcsec$)
Proyected distance ngc3311 and (14) [MMH2011] HUCD39 (4342.0 km/s) is = 8.4\,kpc (31.5$\arcsec$)

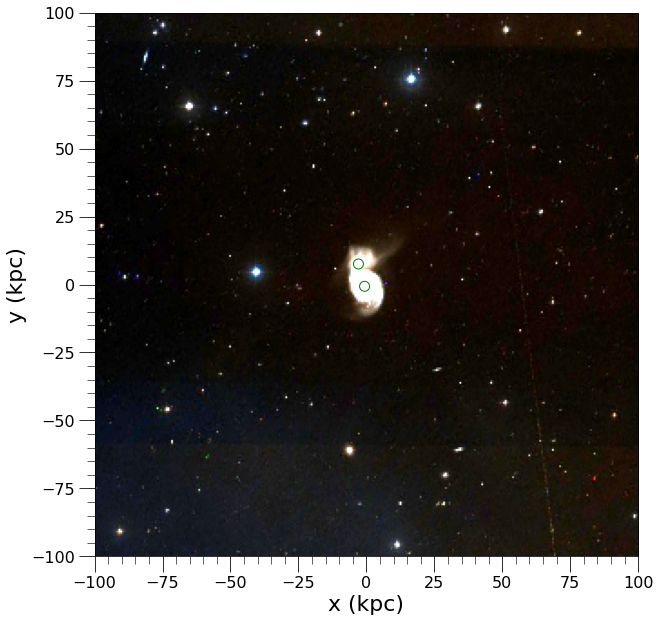

The M51 enviroment within a box of 100kpc¶
[4]:
SL.simbad_thumbnail('m51','simbad',
size_image_phy=100,
limtvel=500)
Basic information:
-------------------
Galaxy Name: m51
MAIN_ID: M 51
RA = 202.469575
DEC = 47.195258
Rad Vel = 465.0 km/s
Distance = 6.6 Mpc
This fits_images/m51_simbad_100kpc.fits file is already downloaded...
------------------------
Simbad query
============
region(circle, 202.469575d +47.195258d, 3105s) & radvel < 965.0 & radvel > -35.0 & Otypes = G & maintype != GlobCluster_Candidate
Output
======
MAIN_ID RA_d DEC_d ... RVZ_BIBCODE SCRIPT_NUMBER_ID
deg deg ...
--------- ------------ ------------ ... ------------------- ----------------
NGC 5195 202.49829200 47.26612800 ... 1999PASP..111..438F 0
M 51 202.46957500 47.19525800 ... 1999PASP..111..438F 0
Projected Distances
------------------------
Proyected distance m51 and (0) NGC 5195 (571.0 km/s) is = 8.5\,kpc (264.6$\arcsec$)
Proyected distance m51 and (1) M 51 (465.0 km/s) is = 0.0\,kpc (0.0$\arcsec$)
